Stainless Steel Tube Processing Solutions

Precision medical cannula processing under ISO 13485 Quality Management Systems.

Home » Solutions » Stainless Steel Tube Processing

Precision in every cut — excellence in every cannula

As a specialist in stainless steel tube processing, we manufacture precision cannulas and needle components for both medical and industrial applications.​

​Our technologies include precision cutting, grinding, beveling, polishing, and cleaning — ensuring unmatched accuracy and surface quality.

Front view of 5 syringe needles
A photo of syringes arranged in a circle

Key Highlights

  • High-precision stainless steel tubing

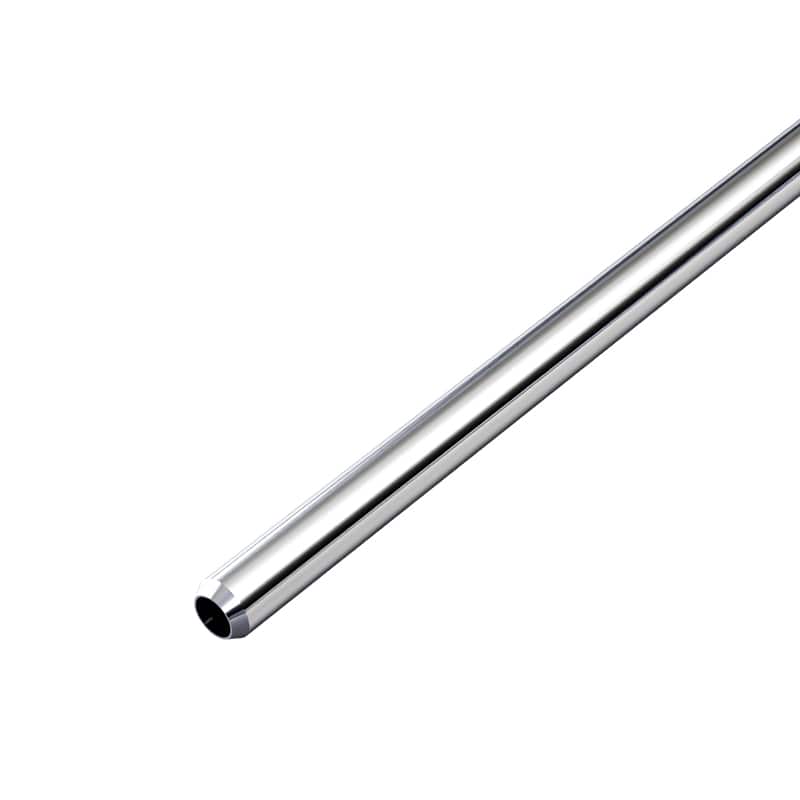

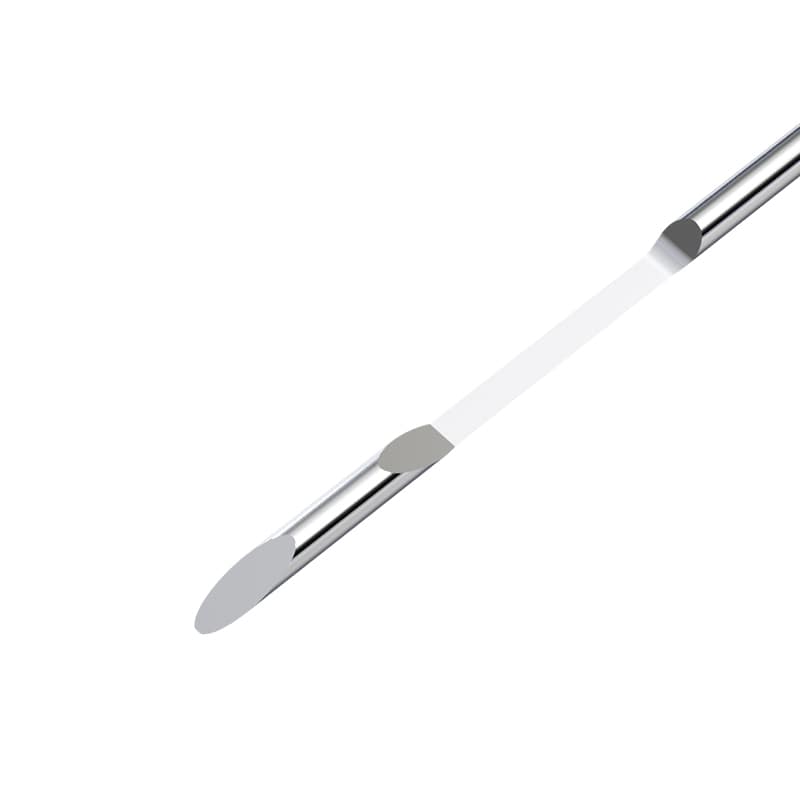

  • Cutting, grinding, beveling and bending
  • Laser machining, ultrasonic cleaning and vision inspection
  • Customized cannula and tubing solutions

Specification

for stainless steel tube iso 9626:2016

Size Outside Diameter(mm) Inner Diameter(mm)
Gauge Designated
metric size(mm)		 Min Max Regular Wall
(RW)		 Thin Wall
(TW)		 Extra Thin
Wall (ETW)		 Ultra Thin
Wall (UTW)
34G 0.18 0.178 0.191 0.064 0.091 0.105 N/A
33G 0.20 0.203 0.216 0.089 0.105 0.125
32G 0.23 0.229 0.241 0.089 0.105 0.125 0.146
31G 0.25 0.254 0.267 0.114 0.125 0.146 0.176
30G 0.30 0.298 0.320 0.133 0.165 0.190 0.240
29G 0.33 0.324 0.351 0.133 0.190 0.240 0.265
28G 0.36 0.349 0.370 0.133 0.190 N/A
27G 0.40 0.400 0.420 0.184 0.241
26G 0.45 0.440 0.470 0.232 0.292
25G 0.50 0.500 0.530 0.232 0.292
24G 0.55 0.550 0.580 0.280 0.343
23G 0.60 0.600 0.673 0.317 0.370 0.460 N/A
22G 0.70 0.698 0.730 0.390 0.440 0.522
21G 0.80 0.800 0.830 0.490 0.547 0.610 0.645
20G 0.90 0.860 0.920 0.560 0.635 0.687 0.713
19G 1.10 1.030 1.100 0.648 0.750 0.850 0.891
18G 1.20 1.200 1.300 0.790 0.910 1.041 N/A
17G 1.40 1.400 1.510 0.950 1.156 1.244 1.276
16G 1.60 1.600 1.690 1.100 1.283 1.390 N/A
15G 1.80 1.750 1.900 1.300 1.460 1.560
14G 2.10 1.950 2.150 1.500 1.600 1.727
13G 2.40 2.300 2.500 1.700 1.956 N/A
12G 2.70 2.650 2.850 1.950 2.235
