Safety IV Catheter – Pen & Wing Type
Global Compliance through ISO 13485 Quality Management Systems

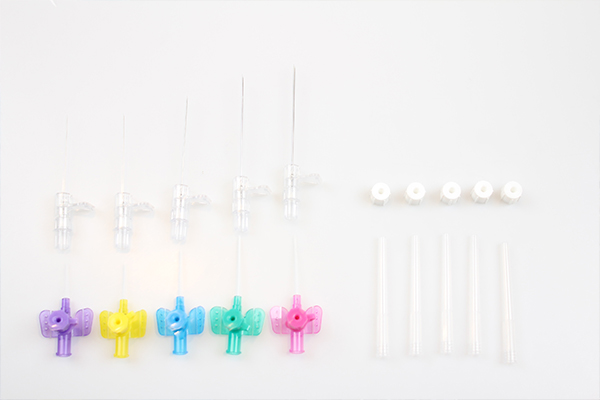

Safety IV Catheter Pen & Wing Type
IV catheters with an integrated safety shield that covers the needle after use for safe handling.
Material
Fluorinated Ethylene Propylene (FEP) / Ethylene Tetrafluoroethylene (ETFE)
Needle Material
Stainless Steel
Sizes Available
18G / 20G / 22G / 24G / 26G
Color Code
Green / Pink / Blue / Yellow / Purple
Sterilization
Ethylene Oxide (EO) Gas
Packaging
100 pcs / inner box, 18 inner boxes / master carton
Specification
| Size | 18G | 20G | 22G | 24G | 26G |
|---|---|---|---|---|---|
| Color Code | Green | Pink | Blue | Yellow | Purple |
Detailed Specification

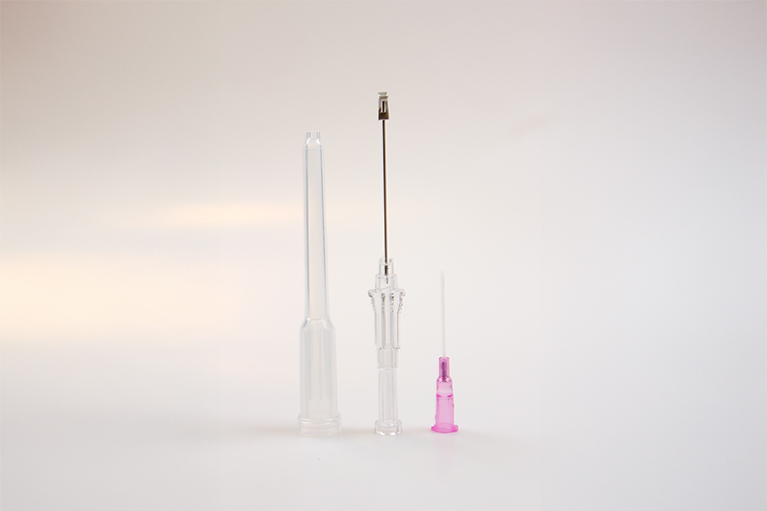

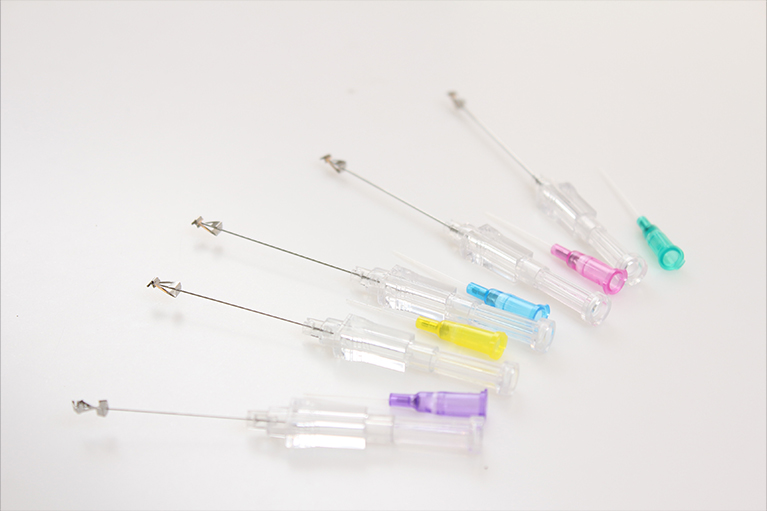

Safety IV Catheter Pen Type
01
Built-in Safety Shield automatically covers the needle after use to prevent needlestick injuries
02
Sharp three-faceted bevel needle allows smooth venipuncture with minimal discomfort
03
Catheter made of medical-grade FEP or ETFE for strength and flexibility
04
Transparent flashback chamber provides clear blood flow confirmation
05
V-shaped bevel design minimizes vein trauma and enables easier insertion
06
Hydrophobic filter prevents blood leakage during use

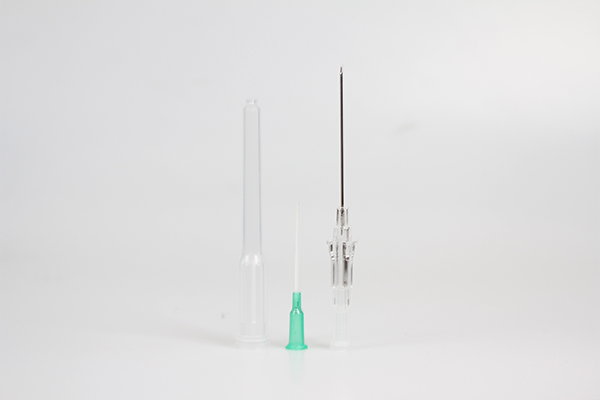

Safety IV Catheter Wing Type
01
Integrated Safety Shield provides complete protection against needlestick injuries
02
Passive safety mechanism activates automatically after needle removal — no manual activation required
03
Double Flashback Technology improves first-insertion success rate
04
V-shaped bevel needle allows gentle venipuncture with less trauma
05
Ergonomic fixation wings provide stable and comfortable placement
06
Injection port with 180° rotating protective cap for safe drug administration
07
Hydrophobic filter prevents backflow and leakage
Compliance & Standards
Manufactured in an ISO 13485 facility, our non-toxic, EO sterilized catheters comply with ISO 10555-1:2023 for single-use.
01
Manufactured in ISO 13485 certified facility
02
Complies with ISO 10555-1:2023
03
Sterilized using Ethylene Oxide (EO) gas
04
Non-toxic and pyrogen-free
05
For single-use only
Key Features
Preventing injuries with an automatic shield, our color-coded safety catheter features a hydrophobic filter and clear flashback.
01
Safety shield covers needle automatically after use
02
Prevents needlestick injuries — no manual action needed
03
Clear flashback chamber for quick blood check
04
Hydrophobic filter prevents leakage
05
Available in color-coded sizes (18G–26G)
